Engine, Securing To Engine And Transmission Holder

Special tools and workshop equipment required

• Engine and Transmission Holder :VAS6095A
  Fig 1: Engine And Transmission Holder

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane :VAS6100
  Fig 2: Identifying Shop Crane

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Lifting Support :2024B
  Fig 3: Identifying Lifting Support 2024B

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Procedure

• The transmission is separated from the engine. Refer to ENGINE AND TRANSMISSION, SEPARATING .

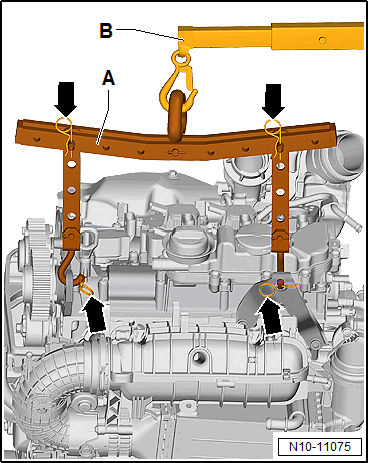

-- Engage the Lifting Support :2024B  -A- on the engine and on the Shop Crane :VAS6100  -B- as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- To be aligned to the center of gravity of the assembly, the rails with holes must be inserted as shown on the mounting points >>2<< and >>7<<.

-- Secure the mounting hooks and pins on the lifting support using connector locks -arrows-.

-- Lower the engine from the Engine Support :T10497  using the Shop Crane :VAS6100  .

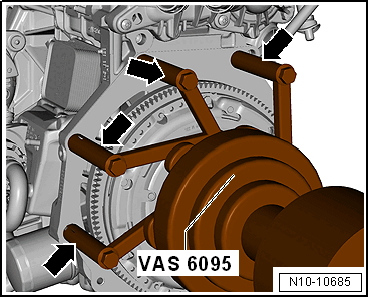

-- Secure the engine with the pins -arrows- on the Engine and Gearbox Bracket :VAS6095A  as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
