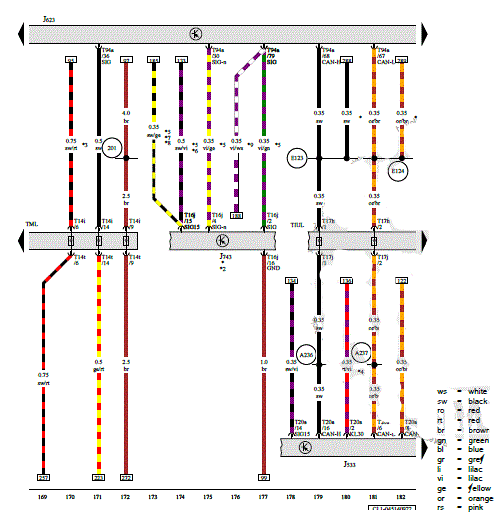

Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Dual-Clutch Transmission MECHATRONIC
J533
Data Bus on Board Diagnostic Interface
J623
Engine/Motor Control Module
J743
Dual-Clutch Transmission Mechatronic
T14i
14-Pin Connector, Gray
T14t
14-Pin Connector, Gray
T16j
16-Pin Connector, Black
T17h
17-Pin Connector, Brown
T17j
17-Pin Connector, Brown
T20a
20-Pin Connector, Black
T94a
94-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
TML
Coupling Point in Engine/Motor Compartment, Left
201
Ground Connection 5 (in Engine/Motor Compartment Wiring Harness)
A236
CAN Bus Drive High Connection 1 (in Instrument Panel Wiring Harness)
A237
CAN Bus Drive Low Connection 1 (in Instrument Panel Wiring Harness)
E123
CAN Bus Drive High Connection 1 (in Engine Wiring Harness)
E124
CAN Bus Drive Low Connection 1 (in Engine Wiring Harness)
*
For Vehicles with Automatic Transmission (DSG)
*2
Refer to Applicable Wiring Diagram for Automatic Transmission (DSG)
*3
Diameter Depends on Equipment
*4
For Vehicles Without Start/Stop System
*5
For Vehicles with Automatic Transmission (DSG)
*6
For Vehicles Without Engine Remote Start
*7
For Vehicles with Engine Remote Start
*8
For Vehicles with Engine Remote Start Setup
For Vehicles with Automatic Transmission
