Transmission Tightening Specifications

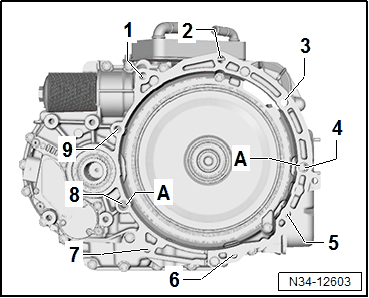

| Item | Bolt | Nm |
|---|---|---|
| 1, 2 and 3 | M12 x 70 | 80
|
| 4 | M12 x 80 | 80 |
| 5, 6 and 7 | M10 x 60 | 40 |
| 8, 9 | M12 x 80 | 80 |
| A | Alignment sleeves for centering | |
| Component | Tightening Specification |
|---|---|
| Cable bracket on the oil pan (transmission cover) | 10 Nm |
| Ground wire on the lower starter bolt | 20 Nm |
