Overview - Center Console

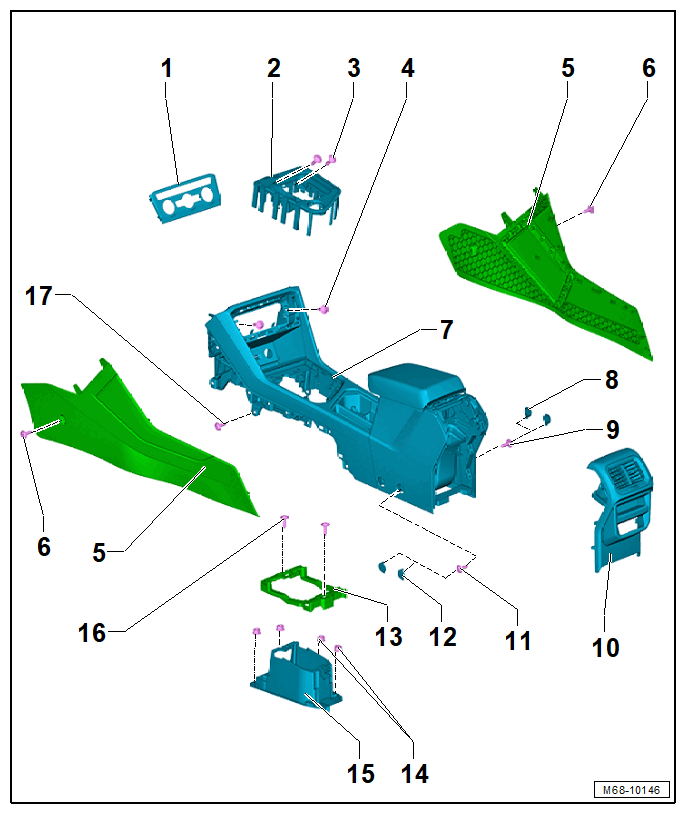

Fig 1: Exploded View Of Center Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Display Control Head Trim
- Removing and Installing. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .
Center Console Insert
- Removing and Installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
Bolts
- For the center console insert to the center console
- Quantity: 2
- 1.5 Nm
Bolts
- For the center console to the instrument panel
- Quantity: 2
- 1.5 Nm
Footwell Center Console Trim Panel
- Left and right
- Removing and Installing. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
Bolts
- For the footwell center console trim panel to the footwell
- One piece per side
- 1.5 Nm
Center Console
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Cap
- Quantity: 2
- Push in the center console
Bolts
- For the center console to the rear bracket
- Quantity: 2
- 8 Nm
Center Console Rear Trim
- Removing and Installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
Bolts
- For the center console to the rear bracket
- Quantity: 2
- 8 Nm
Cap
- Quantity: 2
- Push in the center console
Securing Bracket
- For the center console
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Nuts
- For the selector housing noise insulation to body
- Quantity: 4
- 8 Nm
Selector Housing Insulation
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Bolt
- For the securing bracket to the selector housing noise insulation
- Quantity: 2
- 8 Nm
Bolt
- For the center console to the front bracket
- One piece per side
- 1.5 Nm
