Vehicle Interior Forced Air Extraction, Removing And Installing: Removing

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Loosen the luggage compartment right or left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

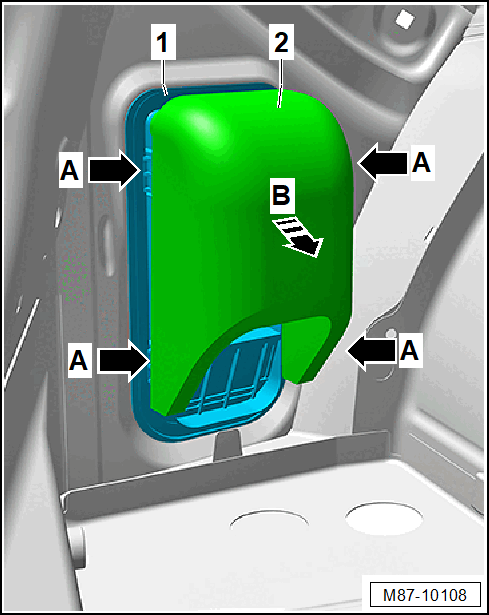

-- Loosen the cover -2- from the retainers -arrows A- and remove from the bleeder -1- in direction of -arrow B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the catches -arrows- using a Trim Removal Wedge :3409  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

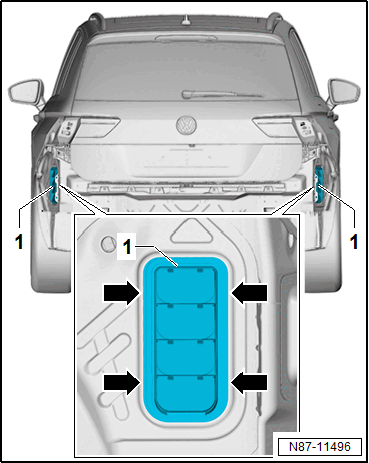

-- Remove the vent frame -1- from the side panel.
