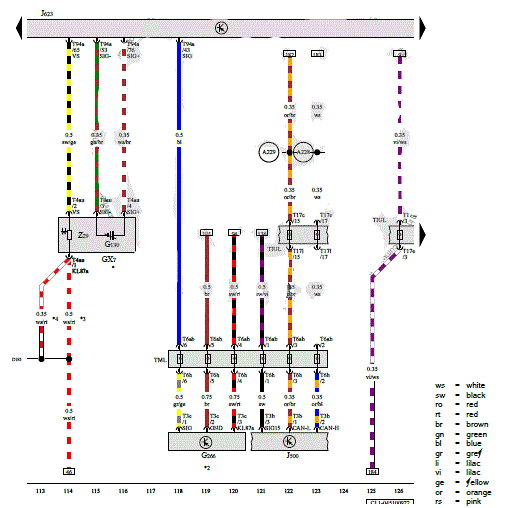

Oxygen Sensor 1 After Catalytic Converter, Oil Level Thermal Sensor, Power Steering Control Module, Engine/ Motor Control Module
GX7
Oxygen Sensor 1 After Catalytic Converter
G130
Oxygen Sensor After Catalytic Converter
G266
Oil Level Thermal Sensor
J500
Power Steering Control Module
J623
Engine/Motor Control Module
T3b
3-Pin Connector, Black
T3c
3-Pin Connector, Black
T4au
4-Pin Connector, Black
T6ab
6-Pin Connector, Black
T6h
6-Pin Connector, Black
T17c
17-Pin Connector, Red
T17e
17-Pin Connector, Blue
T17l
17-Pin Connector, Red
T17m
17-Pin Connector, Blue
T94a
94-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
TML
Coupling Point in Engine/Motor Compartment, Left
Z29
Heater for Oxygen Sensor 1 After Catalytic Converter
A228
Suspension/Instrument Cluster CAN Bus High Connection 1 (in Instrument Panel Wiring Harness)
A229
Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Instrument Panel Wiring Harness)
D181
Connection 2 (87A) (in Engine/Motor Compartment Wiring Harness)
*
Pre-Wired Component
*2
Depending on Equipment
*3
Through July 2022
*4
From July 2022
