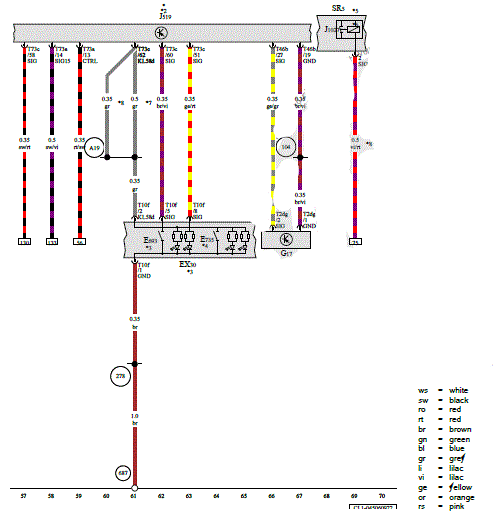

Center Console Switch Module 2, Outside Air Temperature Sensor, Vehicle Electrical System Control Module, Relay And Fuse Panel 5

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX30

Center Console Switch Module 2 Type:BT, Slpdok:, Aim:BTEX30

E693

Start/Stop Mode Button

E735

Driving Profile Selection Button

G17

Outside Air Temperature Sensor Type:BT, Slpdok:, Aim:BTG17

J519

Vehicle Electrical System Control Module Type:BT, Slpdok:, Aim:BTJ519

J1027

Auxiliary Heater Relay

SR5

Relay and Fuse Panel 5

T2dg

2-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT2dg

T10f

10-Pin Connector, Red Type:VA, Slpdok:, Aim:VAT10f

T46b

46-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT46b

T73a

73-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT73a

T73c

73-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT73c

104

Ground Connection (in Right Front Wiring Harness), Sensor Grounds

278

Ground Connection 4 (in Interior Wiring Harness)

687

Ground Connection 1 on Center Tunnel Type:VB, Slpdok:, Aim:VB687

A19

Connection 58d (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*3

For Vehicles with Start/Stop System

*4

Depending on Equipment

*5

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*6

For Vehicles with Auxiliary Heater

*7

Through July 2022

*8

From July 2022
