Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING: Removing

NOTE:

Different bumper versions.

Bumper removal is on necessary on vehicles in which the Outside Air Temperature Sensor -G17- cannot be removed through the bumper.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

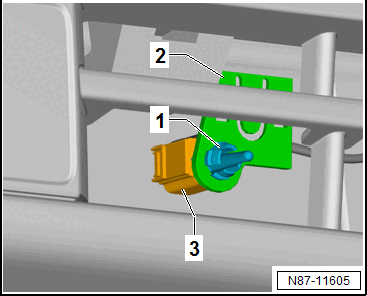

-- Unclip the Outside Air Temperature Sensor -G17- -1- from the bracket -2-.

GWWN87-11605Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -3-.
