Window Guide, Removing And Installing: Removing

NOTE:

Do not bend the window guide when removing it.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the inner window shaft strip. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the outer window shaft strip. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the C-pillar door trim. Refer to DOOR C-PILLAR TRIM, REMOVING AND INSTALLING .

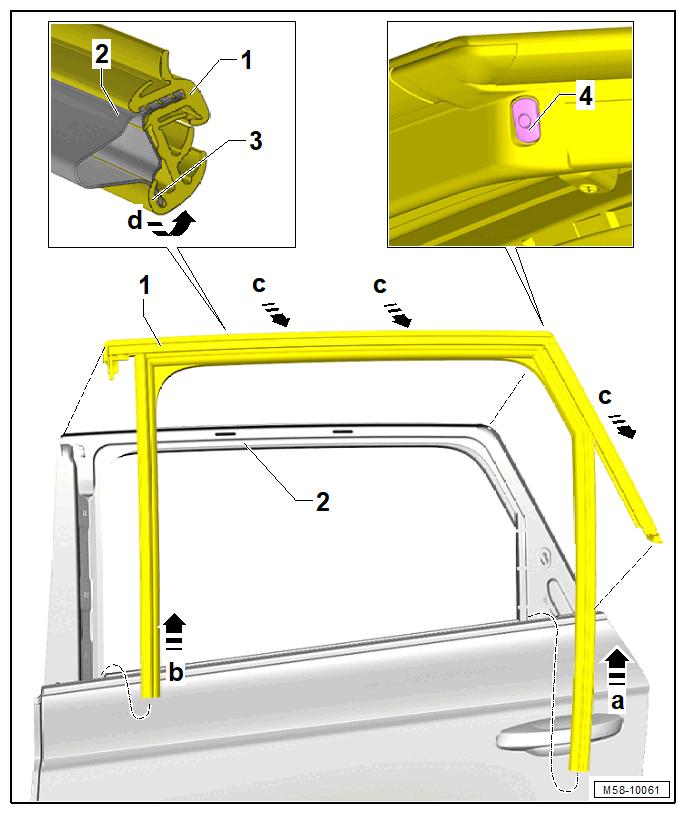

-- Remove the clip -4-.

-- Remove the window guide -1- from the door mounts -arrows a- and -arrow b-.

-- Remove the sealing lip -3- of the window guide from the door flange -2- -arrow d-.

-- Pull the window guide -1- evenly off the door flange -2- all around -arrow C-.
