Transmission Tightening Specifications

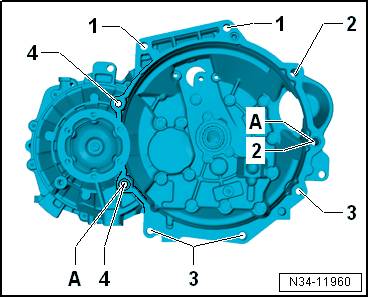

Manual Transmission Retainer to 1.4L TFSI Engine

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	Bolt	Quantity	Nm
1	M12 x 60	2	80
2	M12 x 165 Also starter to transmission	2	80
3	M10 x 55	3	40
4	M12 x 70	2	80

Item -A- alignment sleeves for centering

Fastening the Manual Transmission to the Engine 1.5L TSI

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	Bolt	Quantity.	Nm
1	M12 x 70	1	80
2	M12 x 60	1	80
3	M12 x 60	1	80
4, 5	M 12 x 170 Also starter to transmission	2	80
6	M 10 x 115	1	40
7, 8	M10 x 55	2	40
4	M12 x 70	2	80

Item -A- alignment sleeves for centering

Continuation for All Transmissions

Component	Nm
Wire bracket to lower starter bolt	23
Ground wire to upper starter bolt	20
