Overview - Center Console

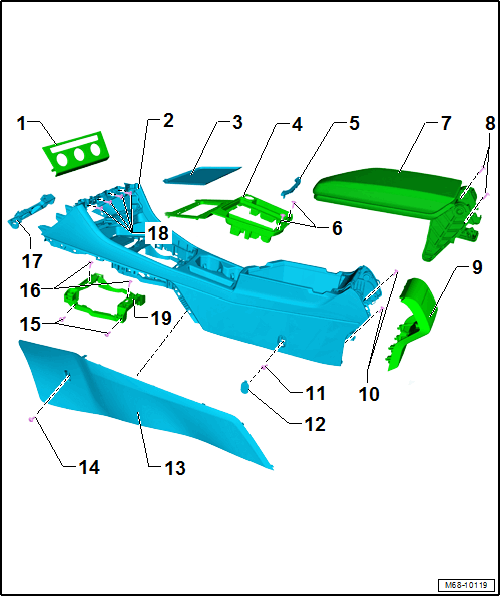

Fig 1: Exploded View Of Center Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Display Control Head Trim
- Removing and Installing. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .
Center Console
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Storage Compartment Insert
Center Console Cover
- Removing and Installing. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .
Trim
- Removing and Installing. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 1.5 Nm
Center Armrest
- Removing and Installing. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 6 Nm
Rear Trim
- Removing and Installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 6 Nm
Bolt
- Quantity: 2
- 6 Nm
Cap
- Quantity: 2
Center Console Trim Panel
- Removing and Installing. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 1.5 Nm
Bolt
- Quantity: 4
- 1.5 Nm
Bolt
- Quantity: 2
- 6 Nm
Securing Bracket
- Attached from the rear to the instrument panel crossmember
Bolt
- Quantity: 4
- 1.5 Nm
Center Console Bracket
- Removing and Installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
