Center Console, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Remove the center console cover. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .

-- Remove the display and control head trim. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .

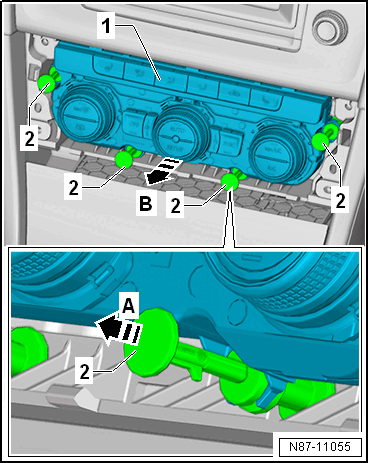

-- Push the display control head -1- toward the instrument panel to release the expanding rivets.

-- Remove the expanding rivets -2- in the direction of the -arrow A-.

-- Remove the display and control head -1- in the direction of the -arrow B-.

-- Release and disconnect the connectors.

-- Remove the front footwell center console trim panels. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .

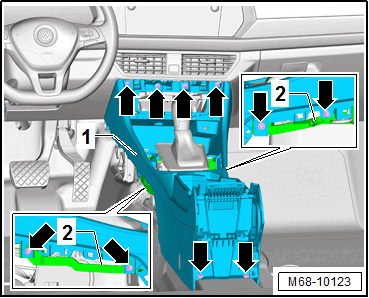

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the left and right cap -1- from the center console -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- on the left and right.

-- Lift up the center console -3- slightly and disconnect the connectors.

-- Free up the wire and remove the center console.
