Center Console Cover, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Set the parking brake to secure the vehicle from rolling away.

-- Move the gearshift lever to "N".

-- Switch off the ignition.

-- Carefully unclip the selector lever-/shift lever boot from the center console and fold it upward.

-- Remove the storage compartment insert -Item  3-.

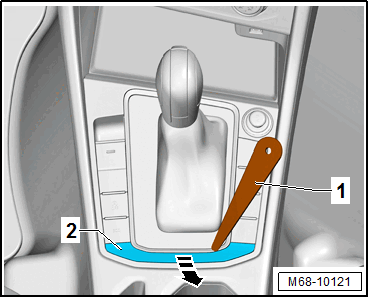

-- Unclip the trim -2- using the Trim Removal Wedge :3409  -1- in the direction of the -arrow-.

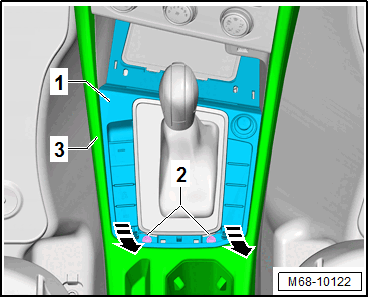

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the center console cover -1- in the direction of the -arrow- from the center console -3-.

-- Disconnect the connectors and remove the center console cover -1- from the center console -3-.
