Center Console Bracket, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

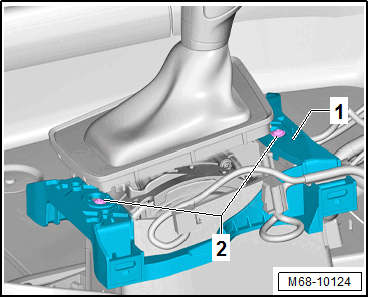

-- Remove the bolts -2-.

-- Remove the center console bracket -1- upward.
