Low Pressure Side Refrigerant Line Balance Weight, Removing And Installing: Removing

NOTE:

It is not required to remove the refrigerant line to remove and install the balance weight.

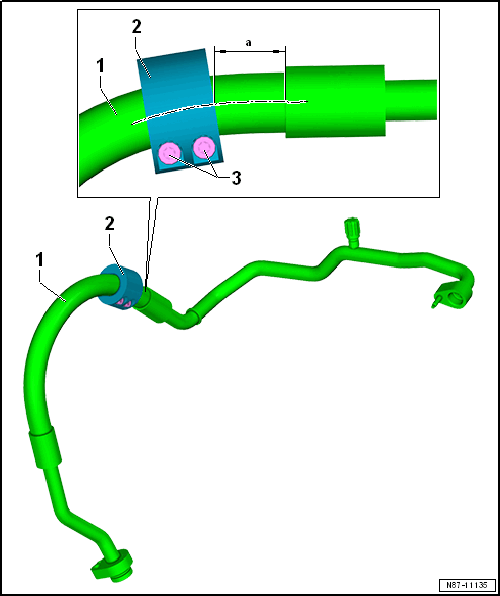

Depending on the vehicle version, refrigerant line, and the vehicle date of manufacture, there may be an additional balance weight -2- on the refrigerant line -1-. Refer to Parts Information.

-- Remove the bolts -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the balance weight -2- from the refrigerant line - low pressure side -1-.
