Overview - Attachments For Heater And A/C Unit And Air Intake Housing
NOTE:
There are different versions and manufacturers of the heater and A/C units. Individual components of the different heater and A/C units are similar but not the same. Interchanging components from different manufacturers is not permitted. Refer to the Parts Information.
A "Valeo" air intake housing is shown in the following illustration. Refer to HEATER AND A/C UNIT IDENTIFICATION for the different manufacturers' distinguishing characteristics of the heater and A/C units.

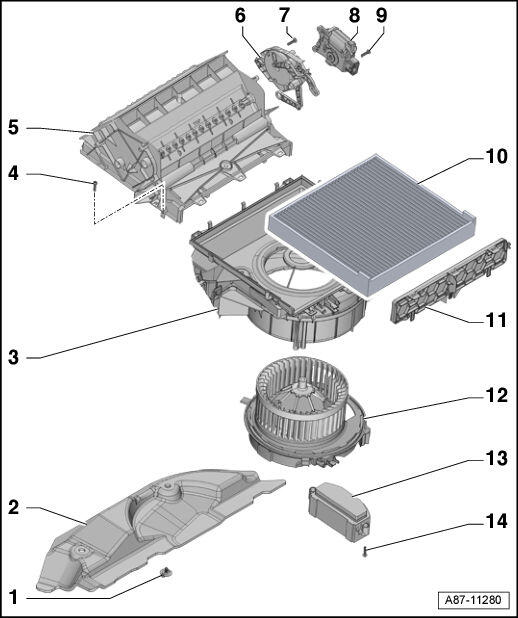

Fig 1: Exploded View Of Air Intake Duct, Dust And Pollen Filter, Fresh Air Blower, Door Control Components
- Plastic Screws or Plug (Depending on Version)
- Quantity: 2
- 0.3 Nm
- Partition
- Removing and installing. Refer to Storage Compartments and Covers .
- Fresh Air Blower Housing Upper Section
- Bolts
- Quantity: 2
- 1 Nm
- Air Intake Duct
- Do not disassemble
- With fresh air and air recirculation door
- Removing and Installing. Refer to AIR INTAKE DUCT, REMOVING AND INSTALLING .
- Dust, Fresh and Air Recirculation Door Adjusting Unit
- Only for Climatronic
- Removing and Installing. Refer to Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, REMOVING AND INSTALLING .
- Bolts
- Only for Climatronic
- Quantity: 2
- 1 Nm
- Actuator
- Check using the Vehicle Diagnostic Tester
Heater and electric-manual climate control system
- Recirculation Door Motor -V113- without position sensor; with end switches in the end stops.
- Removing and Installing. Refer to Recirculation Door Motor -V113-, REMOVING AND INSTALLING .
Climatronic:
- Fresh Air/Recirculating Air/Back Pressure Door Motor -V425- with Fresh Air/Recirculating Air/Back Pressure Door Motor Position Sensor -G644-
- Removing and Installing. Refer to Fresh Air/Recirculating Air/Back Pressure Door Motor -V425-, REMOVING AND INSTALLING .
- Check using the Vehicle Diagnostic Tester
- Bolts
- Quantity: 2
- 1 Nm
- Dust and Pollen Filter
- Removing and Installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
- Cover
- For dust and pollen filter
- Fresh Air Blower -V2-
- Check using the Vehicle Diagnostic Tester
- Removing and Installing. Refer to Fresh Air Blower -V2-, REMOVING AND INSTALLING .
- Fresh Air Blower Control Module -J126-
- Check using the Vehicle Diagnostic Tester
- Removing and Installing. Refer to Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING .
- Bolts
- Quantity: 2
- 1 Nm
