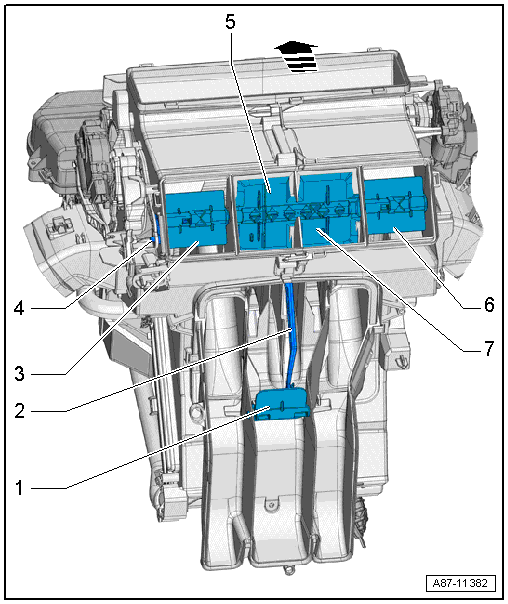

Rear View

NOTE:

-Arrow- = direction of travel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Air Duct Door
Not Installed
Operating Lever
Not Installed
Left Door for Left Instrument Panel Vent
Operating Lever
- For operating the vent doors
- Activated via the adjusting unit -item Defroster and Air Distribution Door Adjusting Unit
Left Door for Center Vent
Right Door for Right Instrument Panel Vent
Right Door for Center Vent
