Vehicle Interior Forced Air Extraction, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

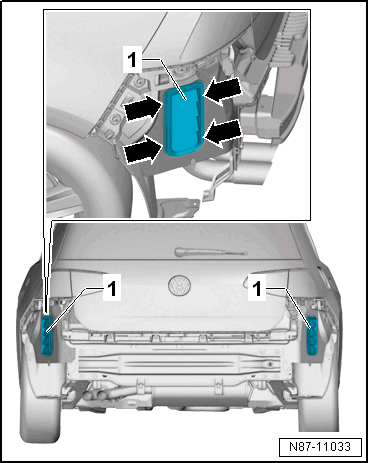

-- Release the catches -arrows- using a Trim Removal Wedge: 3409  .

-- Remove the vent frame -1- from the side panel.
