Overview - Assembly Mounts

WARNING: This page is about a different variant/trim than selected.

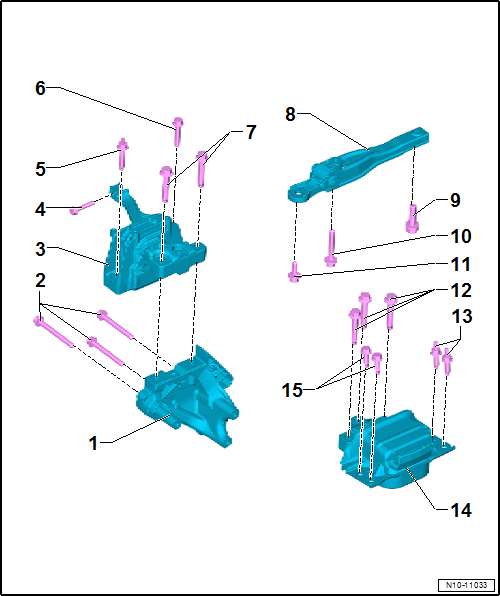

Fig 1: Exploded View Of Assembly Mounts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Engine Support
- Overview. Refer to OVERVIEW - ASSEMBLY MOUNTS .
2 - Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
3 - Engine Mount
- Overview. Refer to OVERVIEW - ASSEMBLY MOUNTS .
4, 5, 6, 7 - Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
8 - Pendulum Support
- Overview. Refer to OVERVIEW - ASSEMBLY MOUNTS .
9, 10, 11 - Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS .
12 - Bolt
- In the single and double bolt versions
- Replace after removing
- 60 Nm +90°
13 - Bolt
- Replace after removing
- 60 Nm +90°
14 - Transmission Mount
- Overview. Refer to OVERVIEW - ASSEMBLY MOUNTS .
15 - Bolt
- Replace after removing
- 50 Nm +90°
