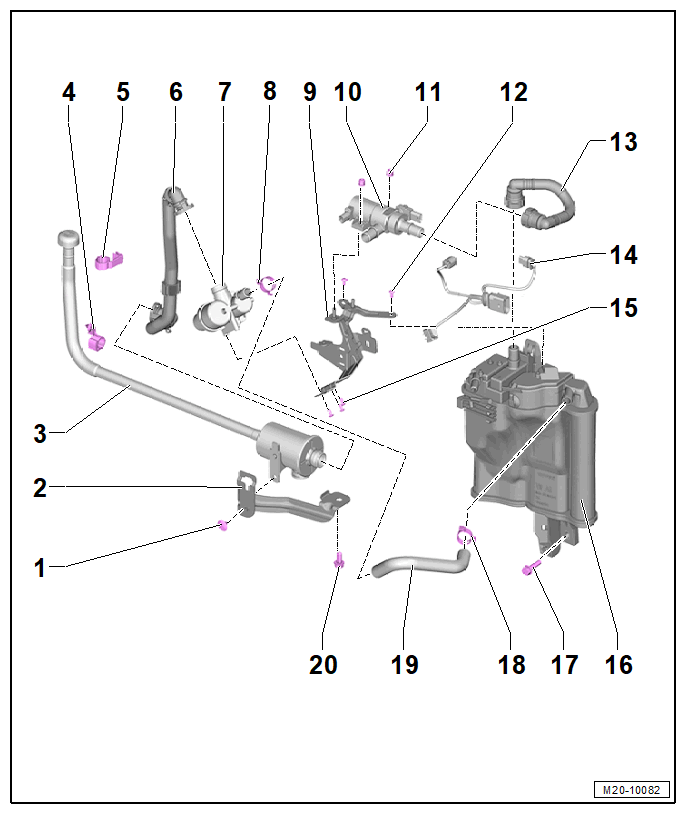

OVERVIEW - EVAP SYSTEM, WITH Fuel Tank Leak Detection Module -GX36- AND Tank Switch-Off Valve -N288-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Clip
Bracket
- For the air filter
Air Filter
- Component location: at the right rear in the wheel housing under the wheel housing liner
- Installed at the right longitudinal member
- Removing and Installing. Refer to EVAP CANISTER AIR FILTER, REMOVING AND INSTALLING, WITH Fuel Tank Leak Detection Module -GX36- AND Tank Switch-Off Valve -N288- .
Clip
- With hose bracket
Clip
- With hose bracket
Connecting Hose
- From the air filter to the Fuel Tank Leak Detection Module -GX36-.
- Check for debris and clean if necessary.
Fuel Tank Leak Detection Module -GX36-
- Component location: right rear at the EVAP canister
- Removing and Installing. Refer to LEAK DETECTION PUMP, REMOVING AND INSTALLING, WITH Fuel Tank Leak Detection Module -GX36- AND Tank Switch-Off Valve -N288- .
Hose Clamp
Bracket
- For Tank Switch-Off Valve -N288- and Fuel Tank Leak Detection Module -GX36-
Tank Switch-Off Valve -N288-
- With Fuel Tank Pressure Sensor -G400-
- Component location: right rear
- Removing and Installing. Refer to Tank Switch-Off Valve -N288- WITH Fuel Tank Pressure Sensor -G400-, REMOVING AND INSTALLING .
Nut
- 8.0 Nm
- Quantity: 2
Bolt
- 1.5 Nm
- Quantity: 2
Connecting Hose
- From Tank Switch-Off Valve -N288- to the EVAP canister
- Check for debris and clean if necessary.
Wiring Harness
Bolt
- 2.0 Nm
- Quantity: 3
EVAP Canister
- Component location: right rear
- Removing and Installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING, WITH Fuel Tank Leak Detection Module -GX36- AND Tank Switch-Off Valve -N288- .
Bolt
- 20 Nm
- Replace after removing
Hose Clamp
Connecting Hose
- From the EVAP canister to the Fuel Tank Leak Detection Module -GX36-.
- Check for debris and clean if necessary.
Bolt
- 20 Nm
- Replace after removing
