Overview - Infotainment System, Composition Media And Discover Media Equipment Levels
Information Electronics Control Module 1 J794 / Front Information Display Control Head J685

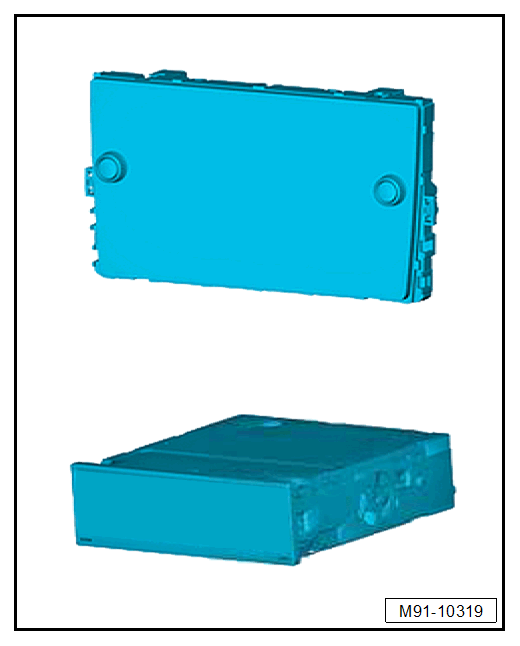

Fig 1: Information Electronics Control Module 1 -J794- /Front Information Display Control Head -J685-
Composition Media and Discover Media Infotainment system characteristics
- 8 inch display with touch screen
- Integrated Bluetooth hands-free calling
- Integrated navigation system with GPS satellite receiver (only Discover Media)
- Integrated SDARS tuner for digital radio reception (optional)
- CVBS input for rearview camera/peripheral camera (optional)
- Input for USB jack to connect external multimedia devices (optional)
CAUTION:
Familiarity with the function and operation of the Infotainment system is needed if there are complaints.
Refer to the Owner's Manual for additional information.
The connection to other vehicle systems is established through the CAN Bus (Infotainment) and the Data Bus on Board Diagnostic Interface -J533-.
Fault Finding is performed using the Vehicle Diagnostic Tester
