Overview - Airbag Control Module

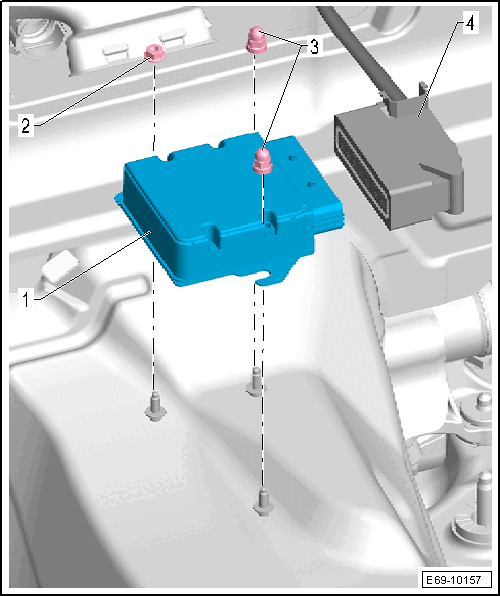

Fig 1: Exploded View Of Airbag Control Module
GWWE69-10157Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Airbag Control Module -J234-
  2. Nut
    • Nut and ground pin serve as a ground connection for the control module
    • The threads must be free of paint and dirt
    • 9 Nm
  3. Nut
    • Quantity: 2
    • Nut and ground pin serve as a ground connection for the control module
    • The threads must be free of paint and dirt
    • 9 Nm
  4. Connector
