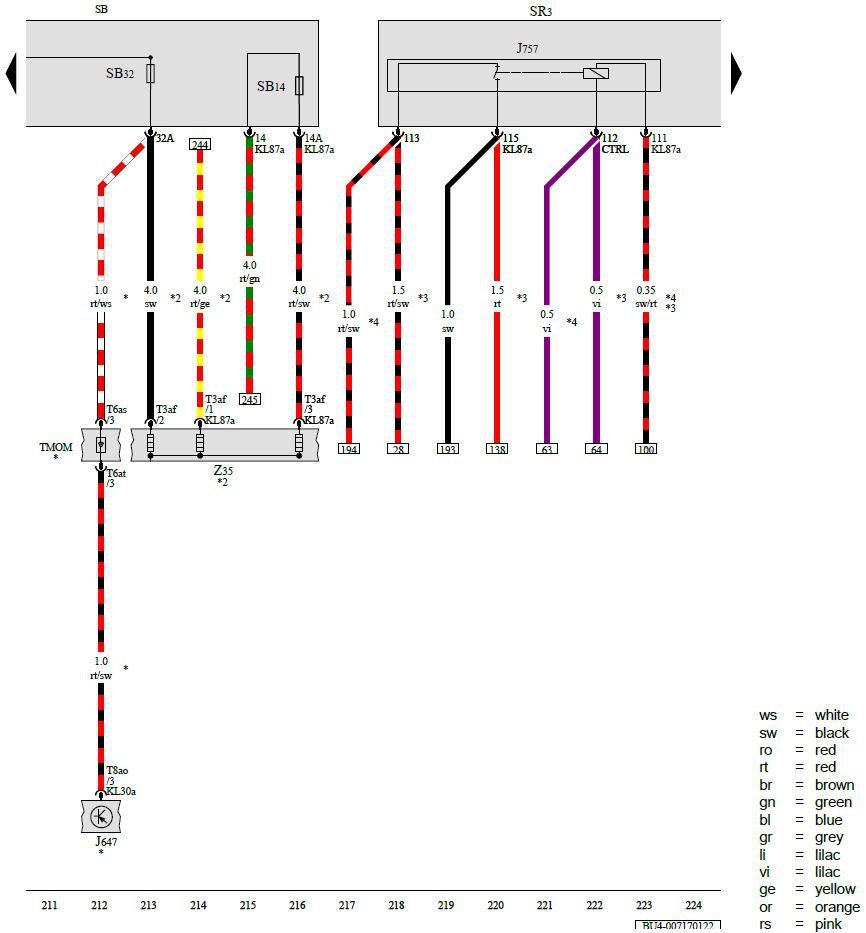

Differential Locks Control Module, Fuse Panel B, Relay and Fuse Panel 3, Auxiliary Heater Heating Element
J647 - Differential Locks Control Module
J757 - Engine Component Power Supply Relay
SB - Fuse Panel B
SR3 - Relay and Fuse Panel 3
SB14 - Fuse 14 (On Fuse Panel B)
SB32 - Fuse 32 (On Fuse Panel B)
T3af - 3-Pin Connector, Black
T6as - 6-Pin Connector, Gray
T6at - 6-Pin Connector, Gray
T8ao - 8-Pin Connector, Black
TMOM - Coupling Point on Engine, Top Center
Z35 - Auxiliary Heater Heating Element
* - For Vehicles with Front Differential Lock
*2 - For Vehicles with Auxiliary Heater
*3 - For Vehicles with 2.0L Gasoline Engine
*4 - For Vehicles with a 1.6L Engine
