Coolant Level, Checking And Filling If Necessary

-- Check the coolant level in the expansion tank when the engine is cold.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

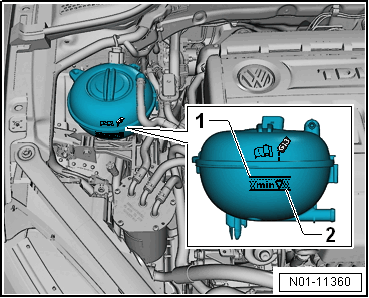

• Pre-delivery inspection: coolant level at least up to the mark -1-.
• At the pre-delivery inspection, a coolant level above the mark -1- is permitted.
• Extracting the increased coolant level is not necessary because the coolant level can be lowered on new vehicles through the venting process.
• Inspection: coolant level above the "MIN mark" -2-.
