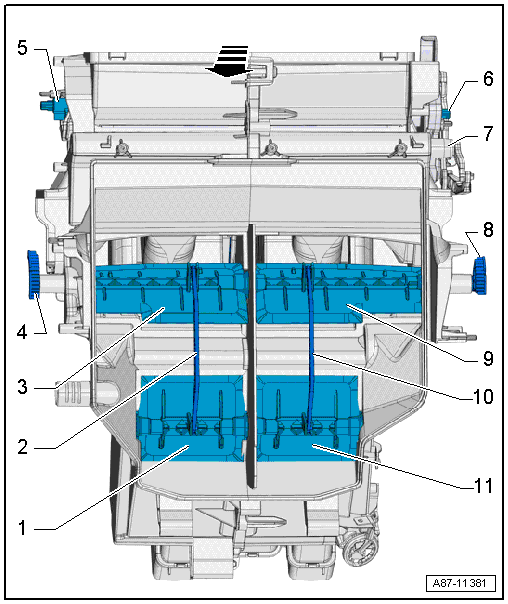

Front View

NOTE:

-Arrow- = direction of travel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Warm Air Door
- From the heater core
- Activated via the right cold air door
Operating Lever
- For door control
Right Cold Air Door
- From the evaporator
  Different versions:

  Electric-manual A/C system
- Activated together with the left cold air door shaft by the Temperature Control Door Motor -V68- via the left operating lever
  Climatronic:
- Activated by the Right Temperature Control Door Motor -V159- via the right operating lever.
Right Operating Lever for Thermostat Door
- Equipped on some models
- Only Climatronic
- Activated by the Right Temperature Control Door Motor -V159-
"Defrost" Door Operating Lever
- For the windshield and door windows
- Equipped on some models
- Only Climatronic
- Activated by the Defroster Door Motor -V107-
"Defrost" Door Operating Lever
- For the windshield and door windows
- Equipped on some models
- Only heater and electric-manual climate control system
- Activated by the Air Distribution Door Motor -V428- via the defrost and air distribution adjusting unit
Air Distribution Door Operating Lever
Electric-manual A/C system
- Activated by the Air Distribution Door Motor -V428- via the defrost and air distribution adjusting unit
  Climatronic:
- Activated by the Front Air Distribution Door Motor -V426- via the defrost and air distribution adjusting unit
Left Operating Lever
Electric-manual A/C system
- Activated by the Temperature Control Door Motor -V68-
  Climatronic:
- Activated by the Left Temperature Control Door Motor -V158-
Left Cold Air Door
- From the evaporator
  Different versions:

  Electric-manual A/C system
- Activated by the Temperature Control Door Motor -V68- via the left operating lever.
  Climatronic:
- Activated by the Left Temperature Control Door Motor -V158- via the left operating lever.
Operating Lever
- For door control
Left Warm Air Door
- From the heater core
- Activated via the left cold air door
