Heater And A/C Unit, Disassembling And Assembling
NOTE:
There are different versions and manufacturers of the heater and A/C units. Individual components of the different heater and A/C units are similar but not the same. Interchanging components from different manufacturers is not permitted. Refer to the Parts Information.

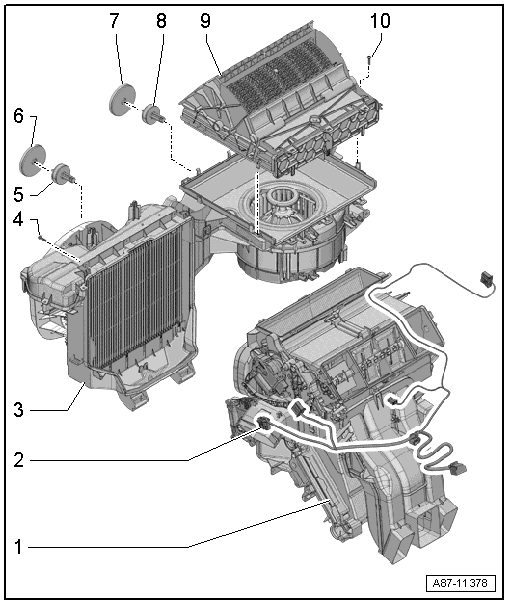

A heater and A/C unit manufactured by "Valeo" is shown in the following illustrations. Refer to HEATER AND A/C UNIT IDENTIFICATION for distinguishing characteristics between manufacturers.
- Air Distribution Housing
- Interchanging components is not permitted.
- The following illustrations show the heater manufactured by "Valeo"
- Depending on vehicle equipment level with or without the Auxiliary Heater Heating Element -Z35- with Auxiliary Heater Control Module -J604-
- Wiring Harness
- Evaporator Housing
- For vehicles without an A/C system an airflow regulator is installed in place of the evaporator.
- Bolts
- Quantity: 3
- 1 Nm
- Left Bracket
- For heater and A/C unit
- Removing and Installing. Refer to HEATER AND A/C UNIT BRACKET, REMOVING AND INSTALLING .
- Nut
- 4.5 Nm
- Nut
- 4.5 Nm
- Right Bracket
- For heater and A/C unit
- Removing and Installing. Refer to HEATER AND A/C UNIT BRACKET, REMOVING AND INSTALLING .
- Air Intake Housing
- Bolts
- Quantity: 2
- 1 Nm
