Heater And A/C Unit Bracket, Removing And Installing: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in the reverse order of removal while noting the following:

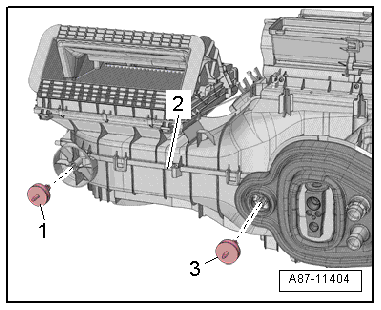

-- Insert the bracket -1- and -3- into the mount on the heater and A/C unit -2- and bring the heater and A/C unit into the installation position.

-- Install the heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .

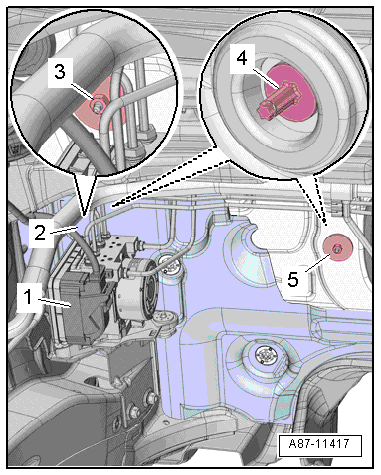

-- Tighten the nuts -3- and -5- on the brackets.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the remaining components.

-- Check the DTC memory and erase any displayed entries using the Vehicle Diagnostic Tester in the Guided Fault Finding  function.

-- Check the heating and A/C system function.
