Right Vent Temperature Sensor -G151-, REMOVING AND INSTALLING: Installing

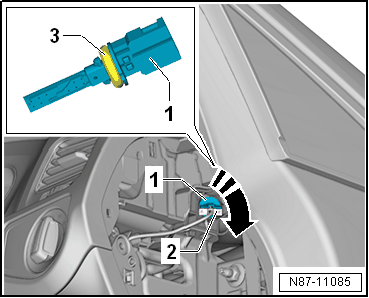

GWWN87-11085Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in the reverse order of removal while noting the following:

-- Replace the seal -3- if it is damaged or faulty.

NOTE:

An incorrectly installed vent temperature sensor causes flow-generated noise.

-- Check the DTC memory and erase any displayed entries using the Vehicle Diagnostic Tester in the Guided Fault Finding  function.
