Left Vent Temperature Sensor -G150-, REMOVING AND INSTALLING: Installing

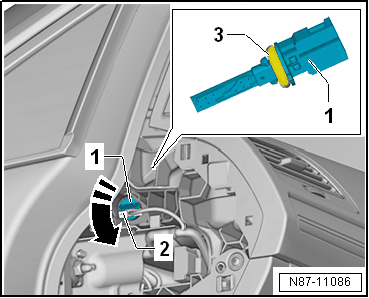

GWWN87-11086Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the seal -3- if it is damaged or faulty.

-- Connect the connector -2-.

-- Place the Left Vent Temperature Sensor -G150- -1- in the mount and turn it 90°.

NOTE:

An incorrectly installed vent temperature sensor causes flow-generated noise.

-- Check the DTC memory and erase any displayed entries using the Vehicle Diagnostic Tester in the Guided Fault Finding  function.
