Air Quality Sensor -G238-, REMOVING AND INSTALLING: Removing

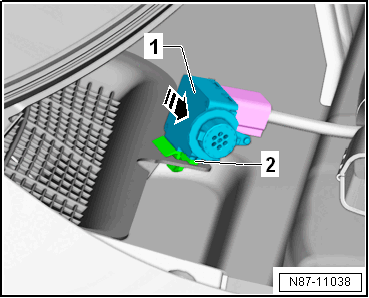

GWWN87-11038Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the fresh air intake cover. Refer to FRESH AIR INTAKE COVER, REMOVING AND INSTALLING .

-- Release the securing tab -2- downward.

-- Pull the Air Quality Sensor -G238- -1- in the -direction of the arrow-.

-- Disconnect the connector.
