Engine, Supporting In Installation Position

Special tools and workshop equipment required

Engine Support Bridge: 10-222A

Fig 1: Engine Support Bridge 10-222A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support - Bracket w/Spindle and Hook: 10-222A/10

Fig 2: Engine Support - Bracket w/Spindle and hook
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support Bridge - Engine Support 28: 10-222A/28

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Support Bridge - Engine Support 28-2: 10-222A/28-2
Engine Support Bridge - Engine Support 29: 10-222A/29 (quantity: 2)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
: T40091/1 and Engine Support - Joint Fixture: T40091/3 from the Engine Support - Basic Set: T40091 (Quantity 2)

Fig 3: Engine Support - Basic Set T40091
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine/Gearbox Support Shackle: 10-222A/12

Fig 4: Engine/Gearbox Support Shackle (10-222A/12)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Check and Prepare the Tools if Necessary:

Fig 5: Identifying Measurements

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If the Engine Support Bridge: 10-222A does not have the hole indicated with the -arrow-, it must be made retroactively.

Dimension -a- = 225 mm.
Hole diameter = 12.5 mm

Procedure

NOTE:

The assembly mount bolts may only be loosened when the engine is supported in the installed position with the Engine Support Bridge: 10-222A .

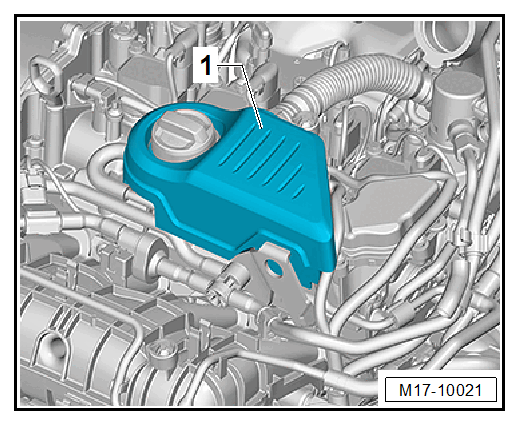

-- Remove the foam insulation -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

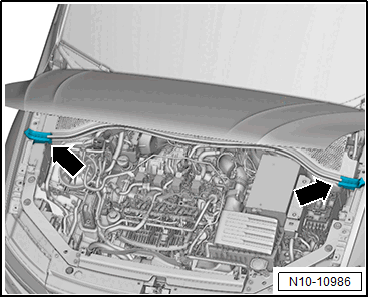

-- Remove the right and left molded foam parts -arrows- for the plenum chamber seal.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

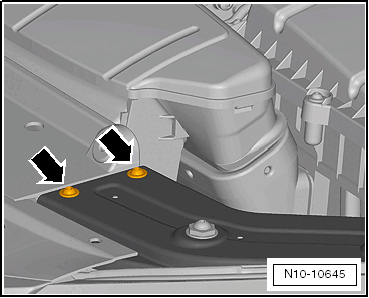

-- Remove the bolts -arrows- for the lock carrier retaining bracket on the left and right sides

Fig 6: Identifying Left And Right Lock Carrier Bracket Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower mounts from the Engine Support Bridge - Engine Support 28: 10-222A/28 .

Fig 7: Identifying Engine Support

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

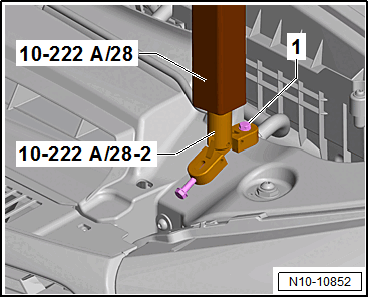

-- Install the Engine Support Bridge - Engine Support 28-2: 10-222A/28-2 .

-- Remove the bolts in direction of -arrows- for securing the engine support bridge on the lock carrier from the Engine Support Bridge - Engine Support 28-2: 10-222A/28-2 .

-- Tighten the Engine Support Bridge - Engine Support 28-2: 10-222A/28-2 on the lock carrier using the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Use the bolts from the Engine Support Bridge - Engine Support 28-2: 10-222A/28-2 for attaching the Engine Support Bridge - Engine Support 28: 10-222A/28 . Do not use the bolts for the retaining bracket.

The front connection point can also be used for securing the adapter Engine Support Bridge - Engine Support 28-2: 10-222A/28-2 .

Bolt tightening specification -1- 8 Nm.

NOTE:

A second technician is needed to mount the Engine Support Bridge on the vehicle to prevent the Engine Support Bridge from tipping.

Engine Support Bridge - Engine Support 29: 10-222A/29 Installation Position:

"L" = -1- Adapter is positioned on the "right" side of the vehicle.
"R" Adapter is positioned on the "left" side of the vehicle.
Insert the Engine Support Bridge - Engine Support 29: 10-222A/29 on both sides of the vehicle between the fender bolting edge and the fender bolting plate underneath.

Assemble the Extractor:

-- Attach an Engine Support Bridge - Engine Support 29: 10-222A/29 with the lettering >>L<< on the right side of the Engine Support Bridge: 10-222A .

-- Slide both Engine Support - Joint Fixture: T40091/3 on the Engine Support Bridge - Square Pipe: 10-222A .

-- The bolts for the Engine Support - Joint Fixture: T40091/3 point in the direction of travel as shown.

-- Attach an Engine Support Bridge - Engine Support 29: 10-222A/29 with the lettering >>R<< on the left side of the Engine Support Bridge: 10-222A .

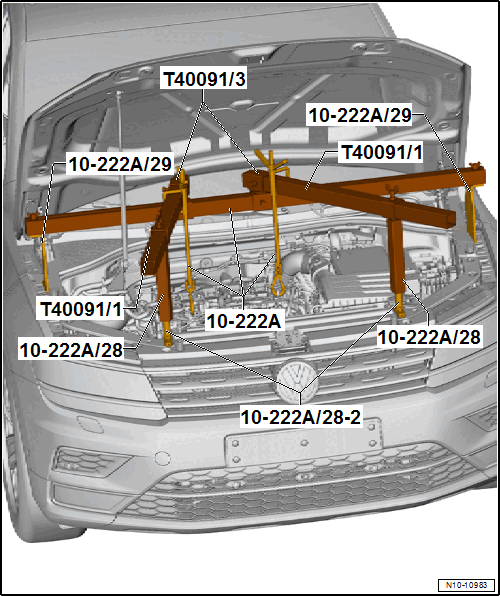

-- Place the Engine Support Bridge: 10-222A onto the longitudinal members.

-- Position the Engine Support Bridge: 10-222A as shown behind the hood support.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the Engine Support Bridge: 10-222A on the longitudinal member.

-- Slide the Engine Support - Basic Set - Square Pipe: T40091/1 on the right side into the Engine Support Bridge - Engine Support 28: 10-222A/28 .

-- Slide the Engine Support Bridge - Spindle: 10-222A on the right side onto the Engine Support - Basic Set - Square Pipe: T40091/1 .

-- The threaded rod from the spindle is located as shown on the interior between the square pipes.

-- Slide the Engine Support - Basic Set - Square Pipe: T40091/1 on the right side into the Engine Support - Joint Fixture: T40091/3 .

-- Slide the Engine Support - Basic Set - Square Pipe: T40091/1 on the left side into the Engine Support Bridge - Engine Support 28: 10-222A/28 .

-- Slide the Engine Support Bridge - Spindle: 10-222A on the left side onto the Engine Support - Basic Set - Square Pipe: T40091/1 .

-- The threaded rod from the spindle is located as shown on the interior between the square pipes.

-- Slide the Engine Support - Basic Set - Square Pipe: T40091/1 on the left side into the Engine Support - Joint Fixture: T40091/3 .

-- Attach the Engine/Gearbox Support Shackle (2 pc.): 10-222A /12 to the right and left lifting eyes.

-- Engage the Engine Support Set - Spindle: 10-222B on the Engine/Gearbox Support Shackle (2 pc.): 10-222A/12 on the right side.

-- Engage the Engine Support Set - Spindle: 10-222B on the Engine/Gearbox Support Shackle (2 pc.): 10-222A/12 on the left side.

-- Align the engine support.

-- Tighten the threaded connections on the engine support bridge.

-- Tension the engine/transmission sub-assembly slightly with the Spindles.
