Headlamp Washer System, Checking Washer Nozzle Adjustment
NOTE:
The washer nozzles can be checked for functionality, but they cannot be adjusted.
Nozzle Adjustment, Checking
-- Turn on the low beam.
-- Operate the windshield washer system.
The headlamps are washed when the windshield wiper lever is held in "wipe position" for at least 1.5 seconds.

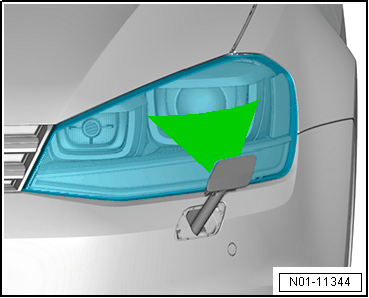

The spray must hit the center of the headlamp glass.
If the spray pattern differs from the specification, perform a repair procedure.
NOTE:
The test pattern is also used for vehicles with halogen headlamps.
