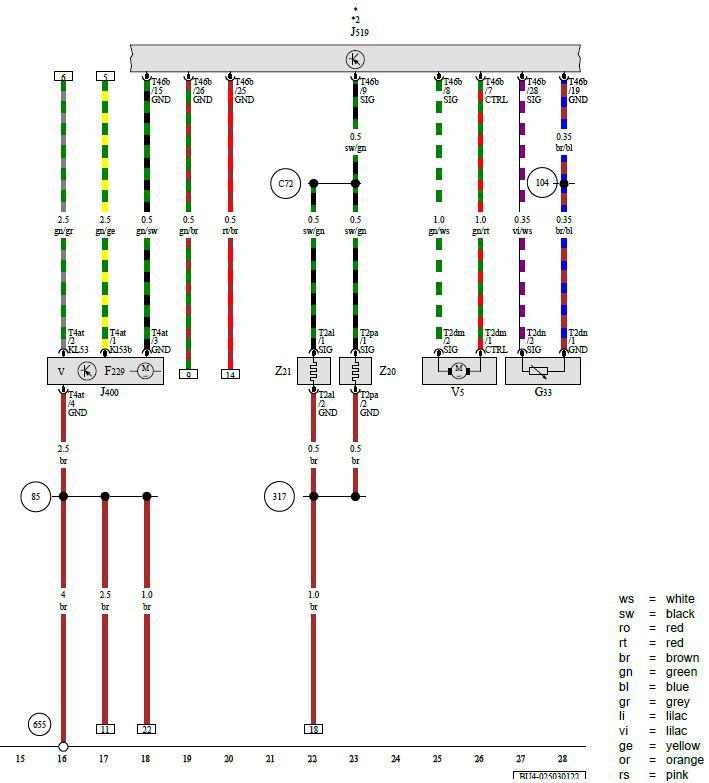

Windshield Washer Fluid Level Sensor, Wiper Motor Control Module, Vehicle Electrical System Control Module, Windshield Washer Pump, Left Washer Nozzle Heater, Right Washer Nozzle Heater
F229 - Windshield Wiper Stop Switch
G33 - Windshield Washer Fluid Level Sensor
J400 - Wiper Motor Control Module
J519 - Vehicle Electrical System Control Module
T2al - 2-Pin Connector, Black
T2dm - 2-Pin Connector, Black
T2dn - 2-Pin Connector, Black
T2pa - 2-Pin Connector, Black
T4at - 4-Pin Connector, Black
T46b - 46-Pin Connector, Black
V - Windshield Wiper Motor
V5 - Windshield Washer Pump
Z20 - Left Washer Nozzle Heater
Z21 - Right Washer Nozzle Heater
85 - Ground Connection 1 (in Engine/Motor Compartment Wiring Harness)
104 - Ground Connection (in Right Front Wiring Harness), Sensor Grounds
317 - Ground Connection 7 (in Engine/Motor Compartment Wiring Harness)
655 - Ground Connection on Left Headlamp
C72 - Positive Connection (in Heated Spray Nozzle Wiring Harness)
* - Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
*2 - Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
