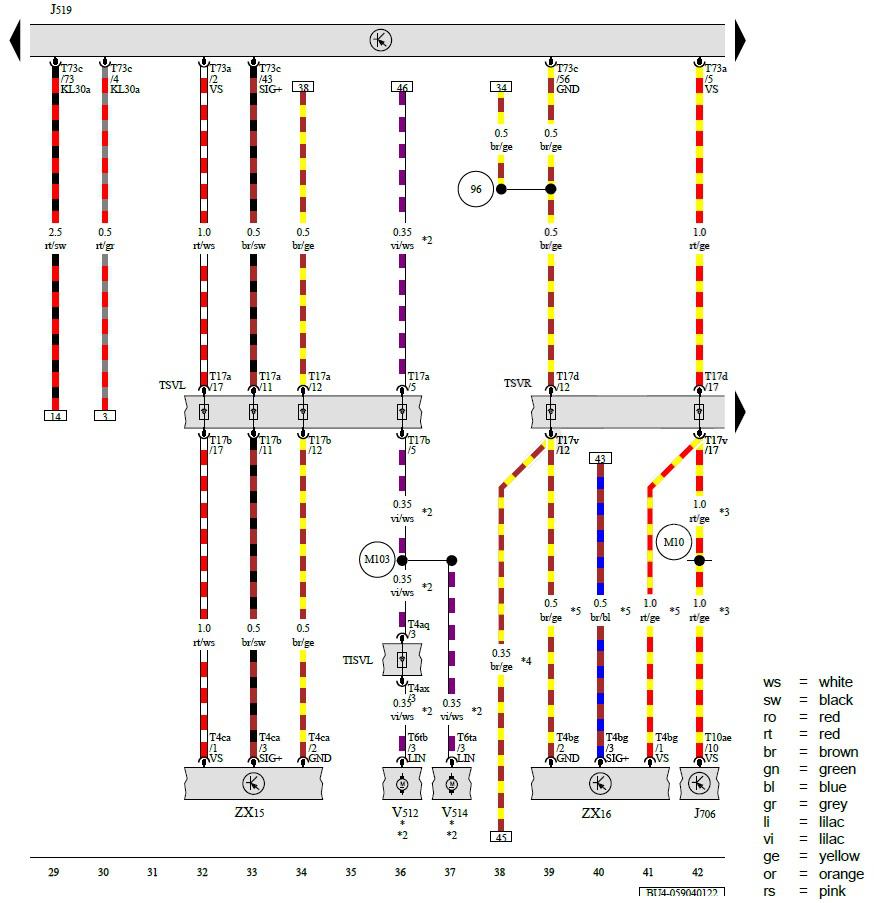

Vehicle Electrical System Control Module, Passenger Occupant Detection System Control Module, Left Front Seat Backrest Fan 1, Left Front Seat Cushion Fan 1, Driver Side Heated Seat, Front Passenger Side Heated Seat
J519 - Vehicle Electrical System Control Module
J706 - Passenger Occupant Detection System Control Module
T4aq - 4-Pin Connector, White
T4ax - 4-Pin Connector, White
T4bg - 4-Pin Connector, Black
T4ca - 4-Pin Connector, Black
T6ta - 6-Pin Connector, Black
T6tb - 6-Pin Connector, Black
T10ae - 10-Pin Connector, Black
T17a - 17-Pin Connector, Red
T17b - 17-Pin Connector, Red
T17d - 17-Pin Connector, Red
T17v - 17-Pin Connector, Red
T73a - 73-Pin Connector, Black
T73c - 73-Pin Connector, Black
TISVL - Coupling Station in Left Front Seat
TSVL - Left Front Seat Coupling Station
TSVR - Right Front Seat Coupling Station
V512 - Left Front Seat Backrest Fan 1
V514 - Left Front Seat Cushion Fan 1
ZX15 - Driver Side Heated Seat
ZX16 - Front Passenger Side Heated Seat
96 - Ground Connection 1 (in Heated Seats Wiring Harness)
M10 - Connection 1 (in Driver Seat Adjustment Wiring Harness)
M103 - LIN Bus Connection 1 (in Left Front Seat Wiring Harness)
* - Pre-Wired Component
*2 - For Vehicles with Seat Ventilation
*3 - Depending on Equipment
*4 - For Vehicles with US Equipment
*5 - For Vehicles Without US Equipment
