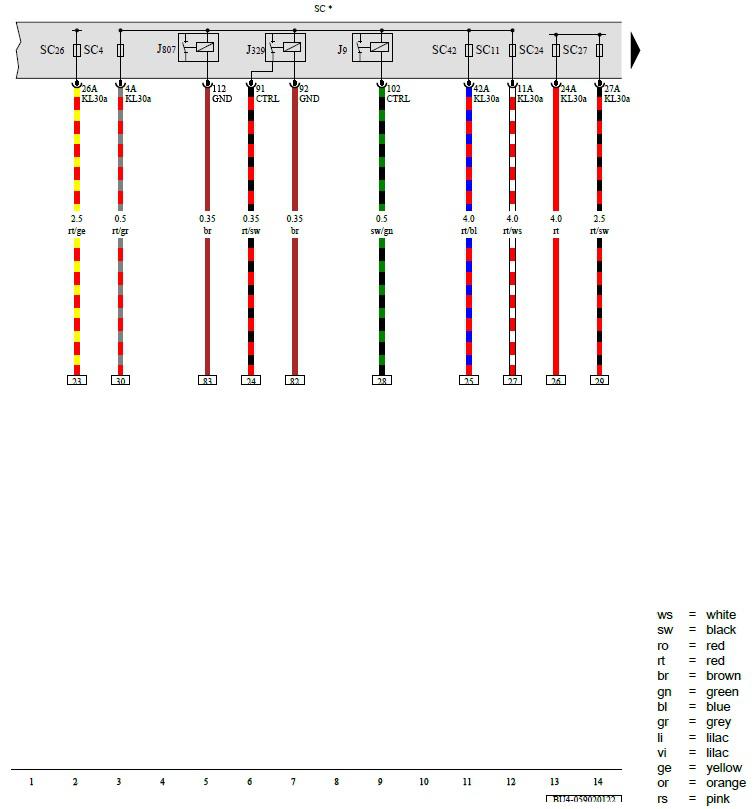

Fuse Panel C
J9 - Rear Window Defogger Relay
J329 - Terminal 15 Power Supply Relay
J807 - Sockets Relay
SC - Fuse Panel C
SC4 - Fuse 4 (On Fuse Panel C)
SC11 - Fuse 11 (On Fuse Panel C)
SC24 - Fuse 24 (On Fuse Panel C)
SC26 - Fuse 26 (On Fuse Panel C)
SC27 - Fuse 27 (On Fuse Panel C)
SC42 - Fuse 42 (On Fuse Panel C)
* - Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
