Battery Tray, Removing And Installing: Removing

-- If necessary, remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING (1.5L) or AIR FILTER HOUSING, REMOVING AND INSTALLING (2.0L) .

-- Remove the Battery -A-. Refer to BATTERY, REMOVING AND INSTALLING .

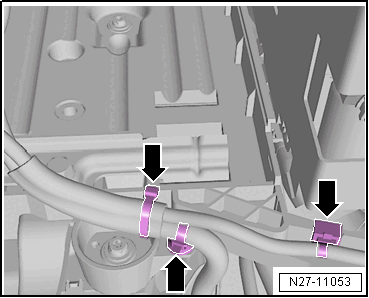

-- Free up the wiring harness from the battery tray -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

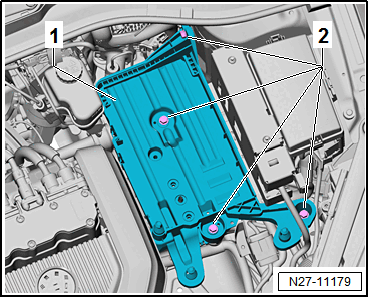

-- Remove the bolts and nut -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the battery tray -1-.
