Blind Spot Detection Control Module -J1086- /Blind Spot Detection Control Module 2 -J1087-, REMOVING AND INSTALLING, WITHOUT GLI EQUIPMENT: Removing

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

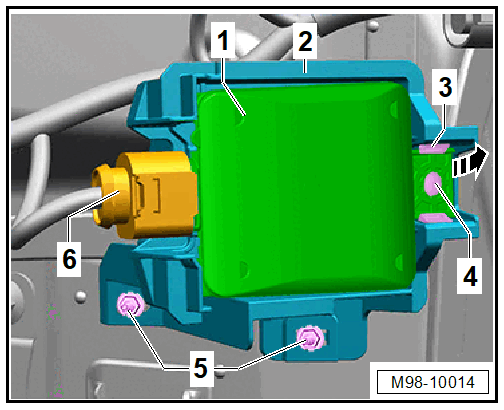

-- Remove the bolt -4- for the bracket -2-

-- Release the retaining tab -3- from the bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Blind Spot Detection Control Module 2 -J1087- -1- in direction of -arrow- out of the bracket -2- until the connector -6- is accessible.

-- Release and disconnect the connector -6-.

-- Remove the nuts -5- for the bracket -2-

-- Remove the bracket -2- from the body.
