Blind Spot Detection Control Module -J1086- /Blind Spot Detection Control Module 2 -J1087-, REMOVING AND INSTALLING, WITH GLI EQUIPMENT: Removing

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

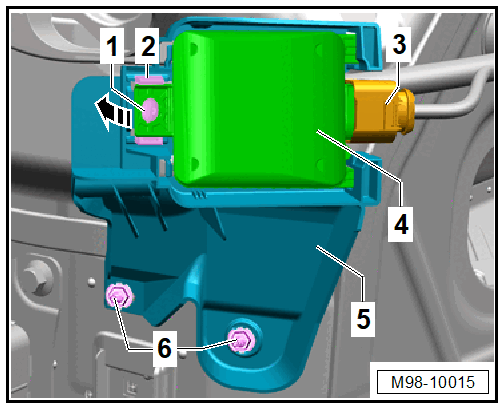

-- Remove the bolt -1- for the bracket -5-.

-- Release the retaining tab -2- on the bracket -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Blind Spot Detection Control Module 2 -J1087- -4- in direction of -arrow- out of the bracket -5- until the connector -3- is accessible.

-- Release and disconnect the connector -3-.

-- Remove the nuts -6- for the bracket -5-.

-- Remove the bracket -5- from the body.
