Remove the Parking Aid Control Module -J446-

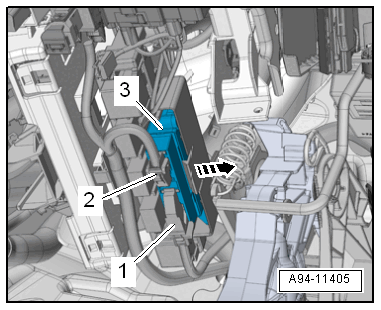

-- Release and disconnect the connectors -1 and 2-.

GWWA94-11405Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retaining tab in the direction of -arrow-.

-- Remove the Parking Aid Control Module -J446- -3- downward from the bracket.
