Left Front Speaker -R2- /Right Front Speaker -R3-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Remove the left front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Release the connector locking mechanism on the Left Front Speaker -R2- in the direction of the -arrow-.

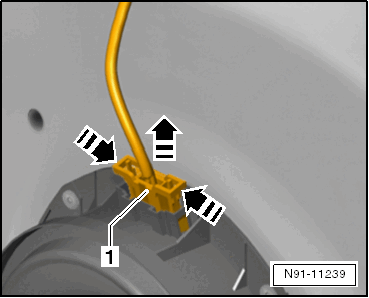

Fig 1: Identifying Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the connector -1-.

-- Remove the rivets -1- with the Drill - 1100 Watt: VAS 6267A  and a suitable spiral bit.

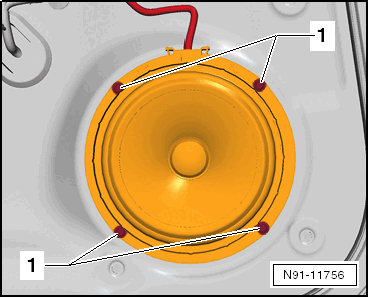

Fig 2: Locating Rivets

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Left Front Speaker -R2- from the inner door panel.
