Digital Sound System Control Module -J525- Bracket, Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If necessary, fold up the carpet and floor insulation at the center tunnel and floor panel.

-- Remove the nuts -2- on the floor.

-- Remove the bolt -1- on the center tunnel.

-- Remove the bracket for the Digital Sound System Control Module -J525- -3-.

Connectors to Digital Sound System Control Module J525

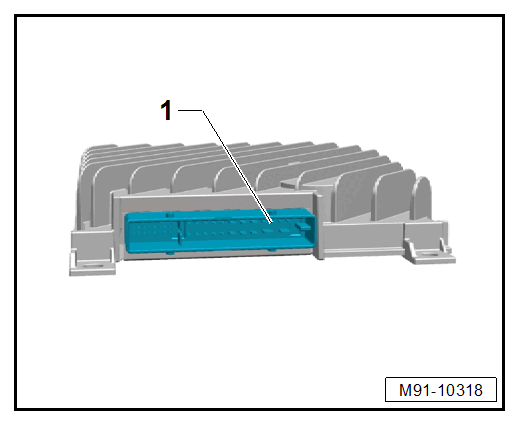

Fig 1: Connectors to Digital Sound System Control Module -J525-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Multi-Pin Connector, 38-Pin
