Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Remove the Instrument Cluster -KX2-. Refer to INSTRUMENT CLUSTER -KX2-, REMOVING AND INSTALLING .

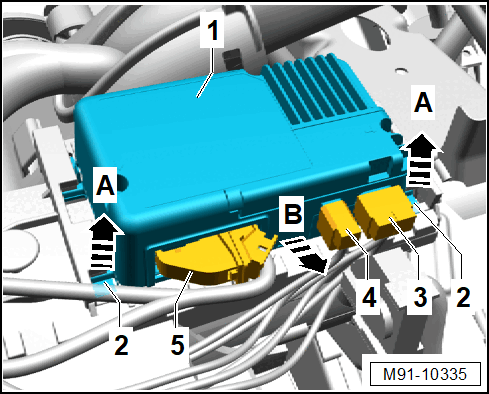

-- Disconnect the connectors -3, 4 and 5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the locking tab -2- in the direction of -arrow A- at the same time remove the Control Module for Emergency Call Module and Communication Unit -J949- -1- in the direction of -arrow B-.
