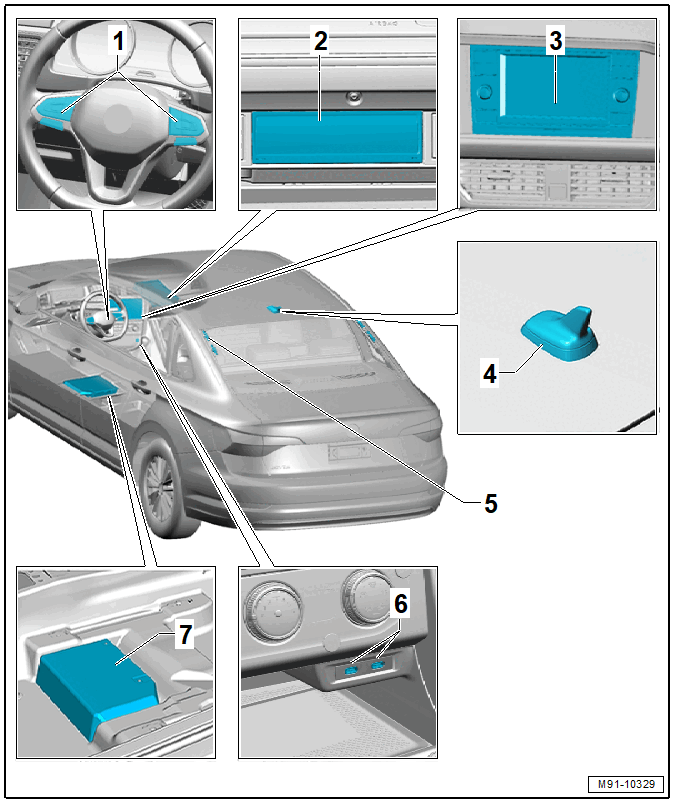

Component Location Overview - Infotainment System
- Multifunction Buttons in Steering Wheel
- Left Multifunction Buttons on Steering Wheel -E440-
- Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- Composition Color: in connection with the Front Information Display Control Head -J685-
- Composition Media, Discover Media, Discover Pro: in Glove Compartment
- Removing and Installing, Composition Color. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .
- Removing and Installing, Composition Media, Discover Media or Discover Pro. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685-
- In the center instrument panel
- Composition Color: in connection with the Information Electronics Control Module 1 -J794-
- Composition Media, Discover Media, Discover Pro: Single Display
- Removing and Installing, Composition Color. Refer to RADIO, REMOVING AND INSTALLING, COMPOSITION COLOR .
- Removing and Installing, Composition Media, Discover Media or Discover Pro. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Front Information Display Control Head -J685- Knobs, Replacing. Refer to Front Information Display Control Head -J685- KNOBS, REPLACING .
- Roof Antenna -RX5-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Rear Window Antenna
- Removing and Installing. Refer to ANTENNA SYSTEMS .
- USB Connection 1 -U41-
- In the front center console storage compartment
- Removing and Installing. Refer to CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES, REMOVING AND INSTALLING, USB Connection 1 -U41- IN FRONT CENTER CONSOLE STORAGE COMPARTMENT .
- Digital Sound System Control Module -J525-
- Under the left front seat
- Removing and Installing. Refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING .
