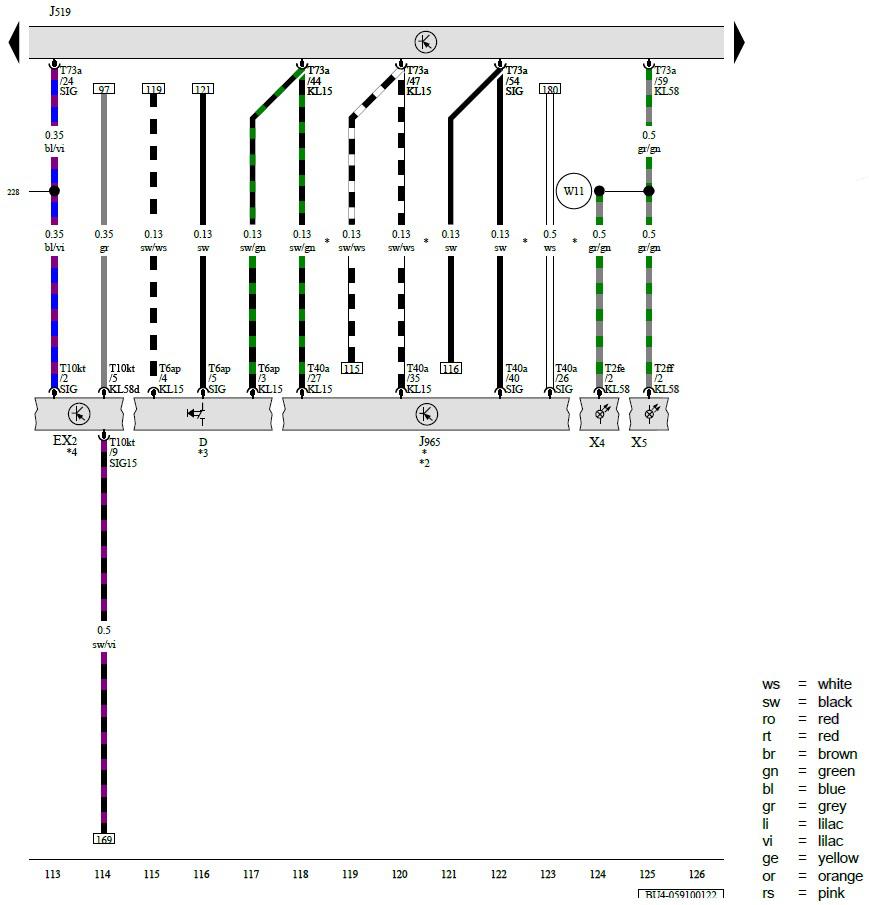

Ignition/Starter Switch, Selector Mechanism, Vehicle Electrical System Control Module, Access/Start System Interface, Left License Plate Lamp, Right License Plate Lamp
D - Ignition/Starter Switch
EX2 - Selector Mechanism
J519 - Vehicle Electrical System Control Module
J965 - Access/Start System Interface
T2fe - 2-Pin Connector, Black
T2ff - 2-Pin Connector, Black
T6ap - 6-Pin Connector, Black
T10kt - 10-Pin Connector, Black
T40a - 40-Pin Connector, Black
T73a - 73-Pin Connector, Black
X4 - Left License Plate Lamp
X5 - Right License Plate Lamp
228 - Connection (in Wiring Harness)
W11 - Connection 58 (in Rear Lid Wiring Harness)
* - For Vehicles with Access/Start Authorization System
*2 - Refer to the Applicable Access/Start Authorization System Wiring Diagram
*3 - For Vehicles Without Access/Start Authorization System
*4 - Refer to Applicable Wiring Diagram for Automatic Transmission
