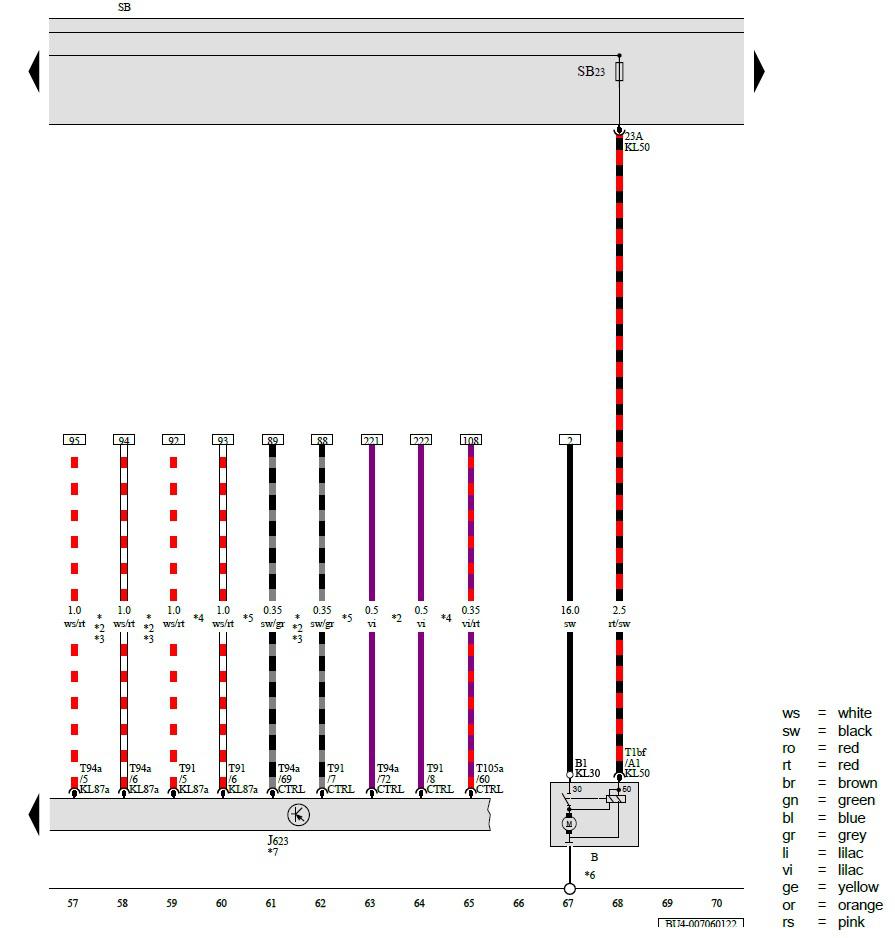

Starter, Engine/Motor Control Module, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

B  Starter

J623  Engine/Motor Control Module

SB  Fuse Panel B

SB23  Fuse 23 (On Fuse Panel B)

T1  1-Pin Connector

T1bf  1-Pin Connector, Black

T91  91-Pin Connector, Black

T94a  94-Pin Connector, Black

T105a  105-Pin Connector, Black

*  For Vehicles with a 1.4L Engine

*2  For Vehicles with a 1.6L Engine

*3  For Vehicles with 1.5L Gasoline Engine

*4  For Vehicles with 2.0L Gasoline Engine

*5  For Vehicles with a 2.0L Engine

*6  Ground Supply via the Housing

*7  Refer to Applicable Engine Wiring Diagram
