Securing On Engine And Transmission Holder

Special tools and workshop equipment required

• Shop Crane: VAS6100
  Fig 1: Identifying Shop Crane

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine and Gearbox Bracket: VAS6095A
  Fig 2: Engine And Transmission Holder

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Holding Plate: VW309A
  Fig 3: Identifying Holding Plate

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• or Holding Plate: VW309A
• Transmission Support: VW353
  Fig 4: Identifying Transmission Support

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Support Bridge: T10323
  Fig 5: Identifying Support Bridge

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Bracket - Multiple Use: 30-211A
  Fig 6: Bracket - Multiple Use 30-211A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Bearing Installer - Multiple Use: 32-111
  Fig 7: Bearing Installer - Multiple Use 32 - 111

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Assembly Tool Kit - Press Piece 2: T10030/4

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

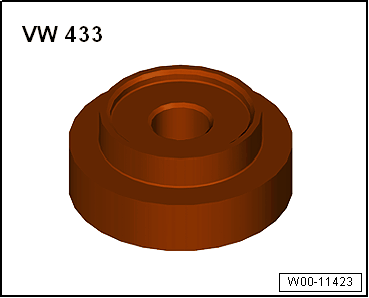

• Press Piece - Multiple Use: VW433

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Rear Wheel Bearing Kit - Piece 7: 3253/7

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Before attaching the transmission to the engine and transmission holder, note the following:

>>High forces<< are introduced to the transmission, when the fifth and sixth gears are installed.

To prevent damage during this process, the input shaft and the clutch housing in the area of the input shaft must be supported against these forces.

For this, the clutch release mechanism is always removed beforehand, so that the shafts are accessible for support.

-- Remove the clutch release lever with the release bearing and guide sleeve. Refer to Fig 8.

Depending on the transmission production date and the version of the transmission, the >>support bridges<< are mounted at different holes of the Transmission Support: VW353  and the transmission.

Two examples on how >>support bridges<< can be mounted:

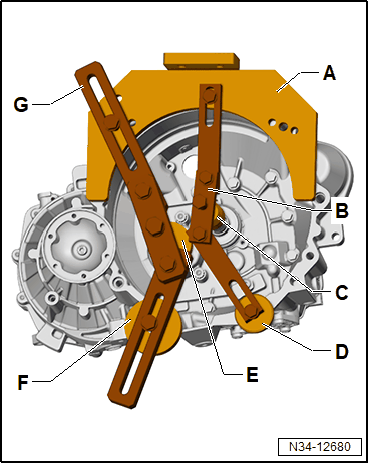

Supporting the Shafts, First Example

Input Shaft:

A - Transmission Support: VW353

B - Bracket - Multiple Use: 30-211A

C - Bearing Installer - Multiple Use: 32-111

D - Assembly Tool Kit - Press Piece 2: T10030/4

Clutch Housing in the Area of the Area of the Output Shaft:

E - Press Piece - Multiple Use: VW433

F - Rear Wheel Bearing Kit - Piece: 3253/7

G - Support Bridge: T10323

• Force to the input shaft may only be applied when mounting the fifth and sixth gears, using the Bearing Installer - Multiple Use: 32-111  .

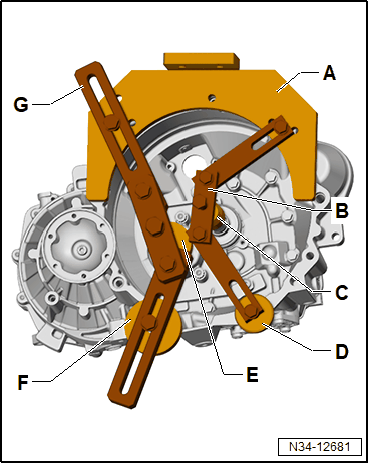

Supporting the Shafts, Second Example

Input Shaft:

A - Transmission Support: VW353

B - Bracket - Multiple Use: 30-211A

C - Bearing Installer - Multiple Use: 32-111

D - Assembly Tool Kit - Press Piece 2: T10030/4

Clutch Housing in the Area of the Area of the Output Shaft:

E - Press Piece - Multiple Use: VW433

F - Rear Wheel Bearing Kit - Piece: 3253/7

G - Support Bridge: T10323

• Force to the input shaft may only be applied when mounting the fifth and sixth gears, using the Bearing Installer - Multiple Use: 32-111  .

If the gears of the fifth or sixth are not removed and installed, then the transmission can be mounted to the Transmission Support: VW353  without >>support bridges<<.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the transmission on the Transmission Support: VW353  .

-- Place the Drip Tray underneath.
