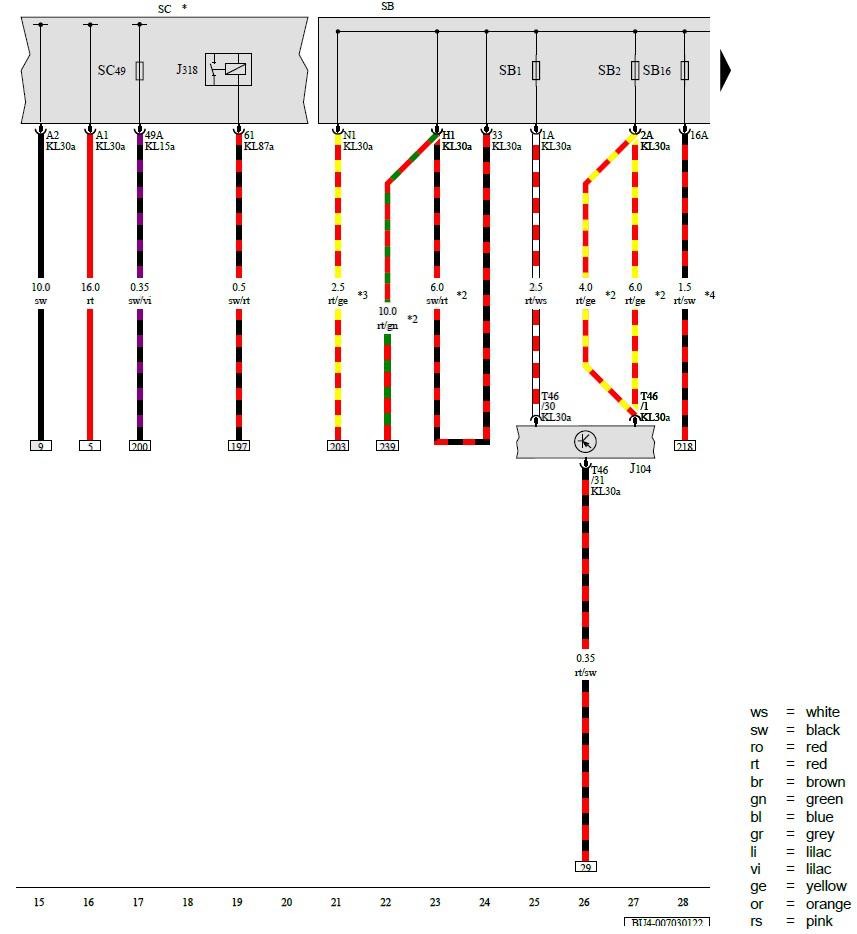

ABS Control Module, Fuse Panel B, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J104  ABS Control Module

J318  Vacuum Pump Relay

SB  Fuse Panel B

SB1  Fuse 1 (On Fuse Panel B)

SB2  Fuse 2 (On Fuse Panel B)

SB16  Fuse 16 (On Fuse Panel B)

SC  Fuse Panel C

SC49  Fuse 49 (On Fuse Panel C)

T46  46-Pin Connector, Black

*  Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2  Depending on Equipment

*3  For Vehicles with Automatic Transmission (DSG)

*4  For Vehicles with 2.0L Gasoline Engine
