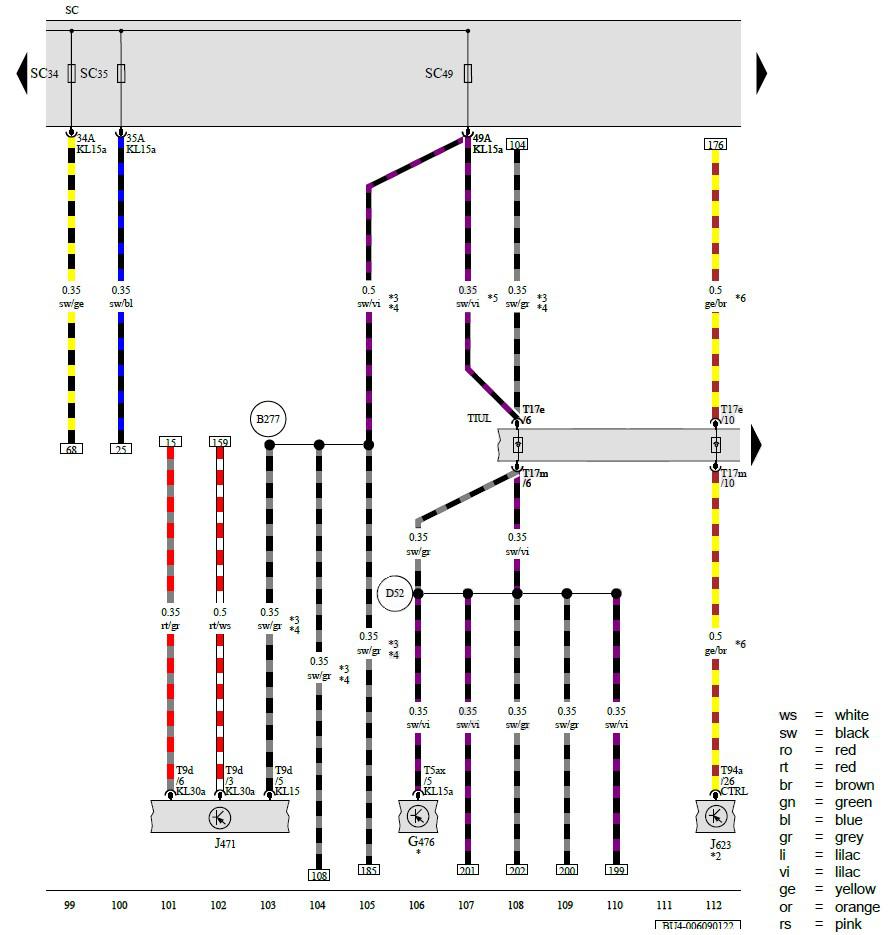

Clutch Position Sensor, Remote Start System Relay, Engine/Motor Control Module, Fuse Panel C
G476 Clutch Position Sensor
J471 Remote Start System Relay
J623 Engine/Motor Control Module
SC Fuse Panel C
SC34 Fuse 34 (On Fuse Panel C)
SC35 Fuse 35 (On Fuse Panel C)
SC49 Fuse 49 (On Fuse Panel C)
T5ax 5-Pin Connector, Black
T9d 9-Pin Connector, Gray
T17e 17-Pin Connector, Blue
T17m 17-Pin Connector, Blue
T94a 94-Pin Connector, Black
TIUL Coupling Point in Interior, Bottom Left
B277 Positive Connection 1 (15a) (in Main Wiring Harness)
D52 Positive Connection (15a) (in Engine/Motor Compartment Wiring Harness)
* For Vehicles with a Manual Transmission
*2 Refer to Applicable Engine Wiring Diagram
*3 For Vehicles with Engine Remote Start
*4 For Vehicles with Engine Remote Start Setup
*5 For Vehicles Without Engine Remote Start
*6 For Vehicles with a 1.4L Engine
