Control Module Cooling Fan V274, Removing And Installing: Removing

Vehicles with footwell cover

-- Remove the front passenger side footwell cover. Refer to FRONT PASSENGER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

Continuation for all vehicles

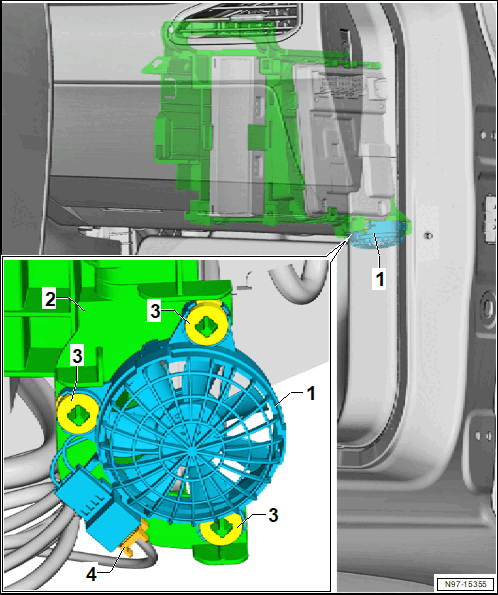

-- Remove the fan -1- with the rubber bushing -3- from the bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -4-.

-- Remove the control module cooling fan -1-.
