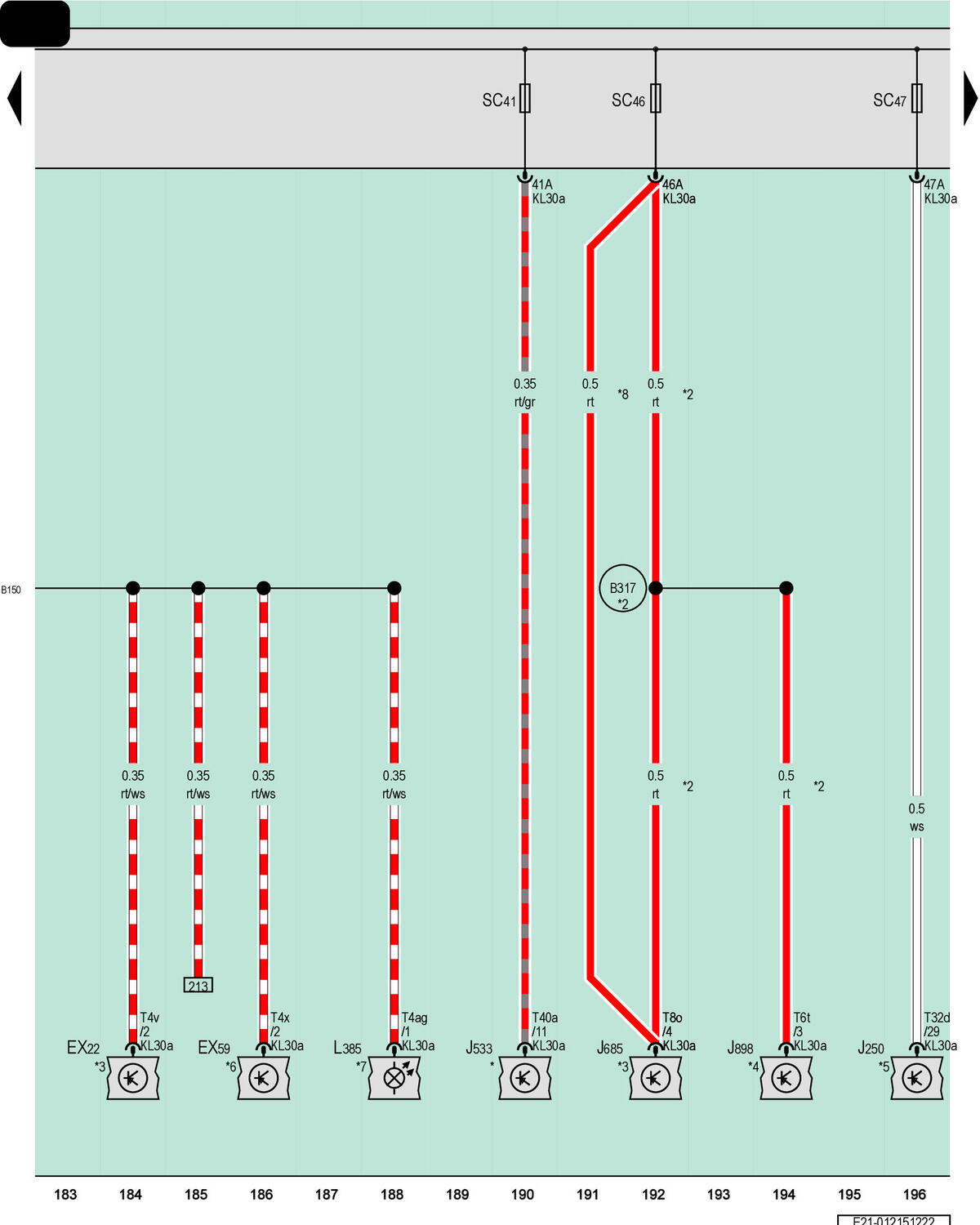

Center Instrument Panel Switch Module, Illumination Control Head, Electronic Damping Control Module, Data Bus On Board Diagnostic Interface, Front Information Display Control Head, Windshield Projection Head Up Display Control Module, Dynamic Information Lighting Strip 3, Fuse Panel C
EX22
Center Instrument Panel Switch Module
EX59
Illumination Control Head
J250
Electronic Damping Control Module
J533
Data Bus on Board Diagnostic Interface
J685
Front Information Display Control Head
J898
Windshield Projection Head Up Display Control Module
L385
Dynamic Information Lighting Strip 3
SC
Fuse Panel C
SC41
Fuse 41 (On Fuse Panel C)
SC46
Fuse 46 (On Fuse Panel C)
SC47
Fuse 47 (On Fuse Panel C)
T4ag
4-Pin Connector, Black
T4v
4-Pin Connector, Red
T4x
4-Pin Connector, Red
T6t
6-Pin Connector, Black
T8o
8-Pin Connector, Black
T32d
32-Pin Connector, Black
T40a
40-Pin Connector, Black
B150
Positive Connection 2 (30a) (in Interior Wiring Harness)
B317
Positive Connection 3 (30a) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Data Bus Networking
*2
For Vehicles with Windshield Projection
*3
Refer to the Applicable Multimedia System Wiring Diagram
*4
Refer to Applicable Windshield Projection Wiring Diagram
*5
Refer to the Applicable Adaptive Chassis DCC Wiring Diagram
*6
Refer to Applicable Light Switch Wiring Diagram
*7
Refer to Applicable Wiring Diagram for Instrument Cluster
*8
For Vehicles Without Windshield Projection
